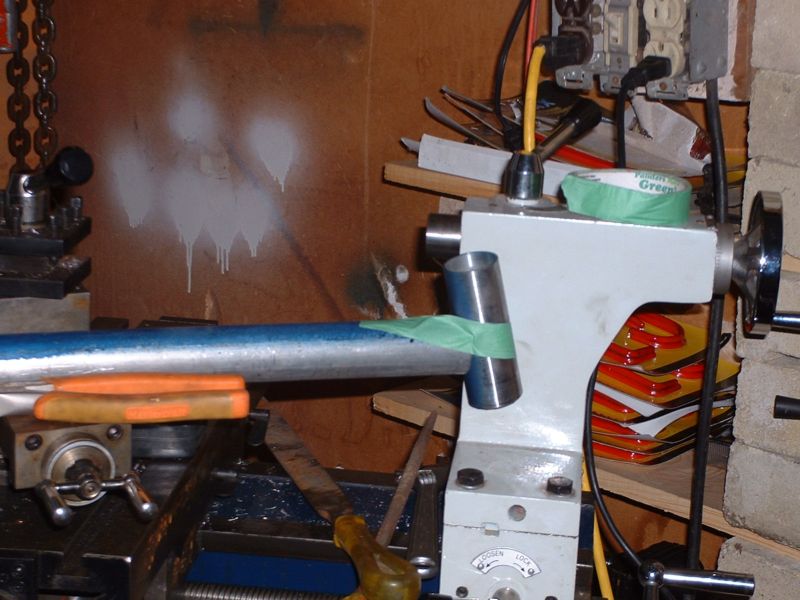

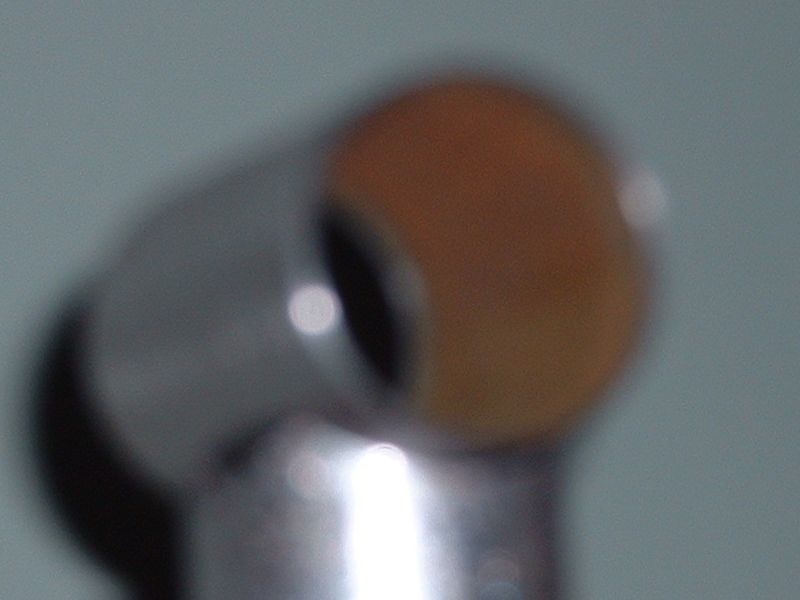

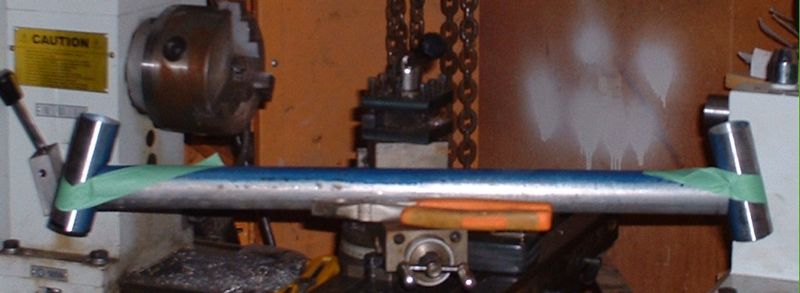

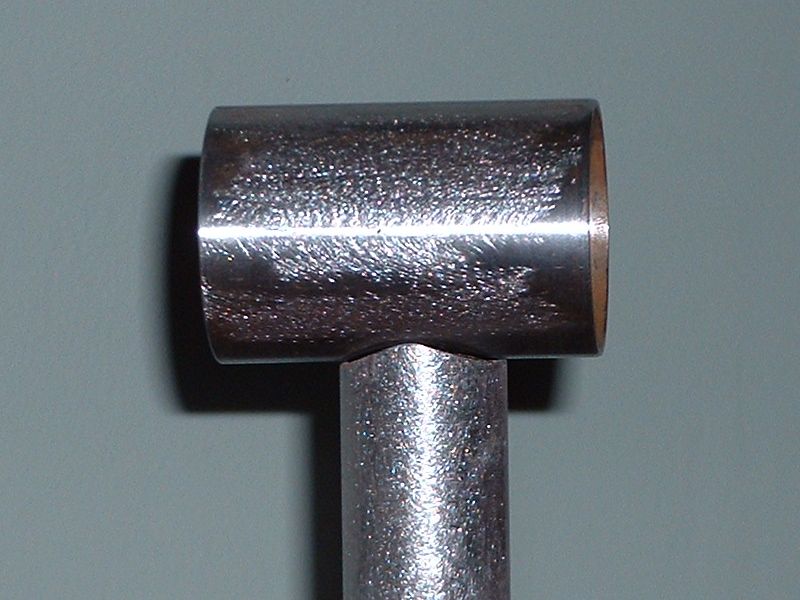

Dry Fitting

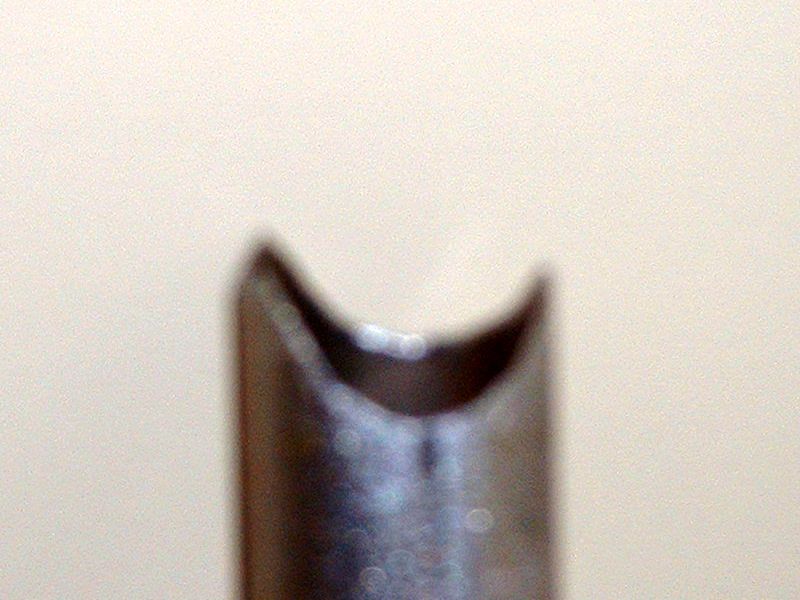

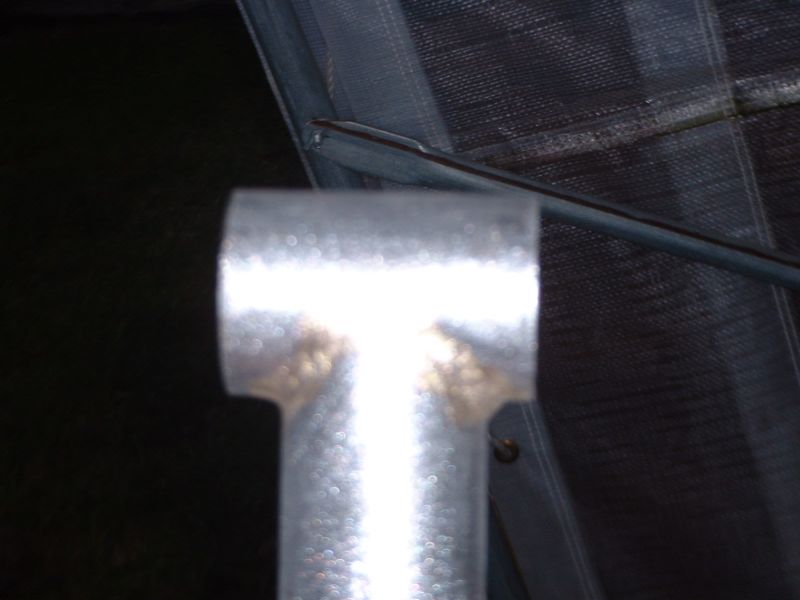

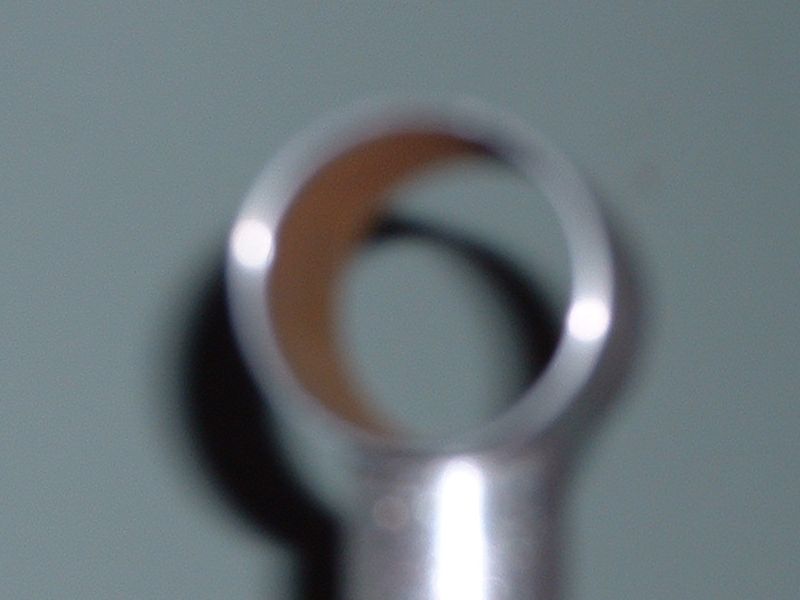

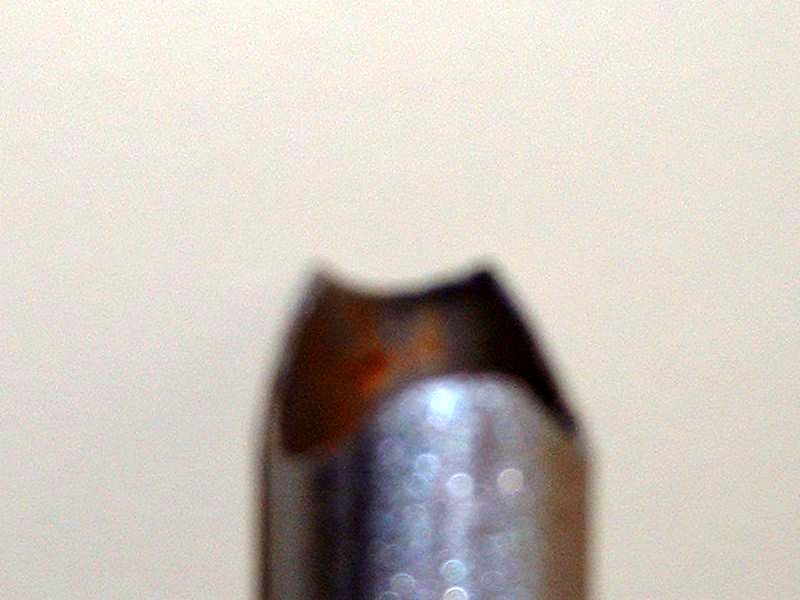

Notched Main Boom

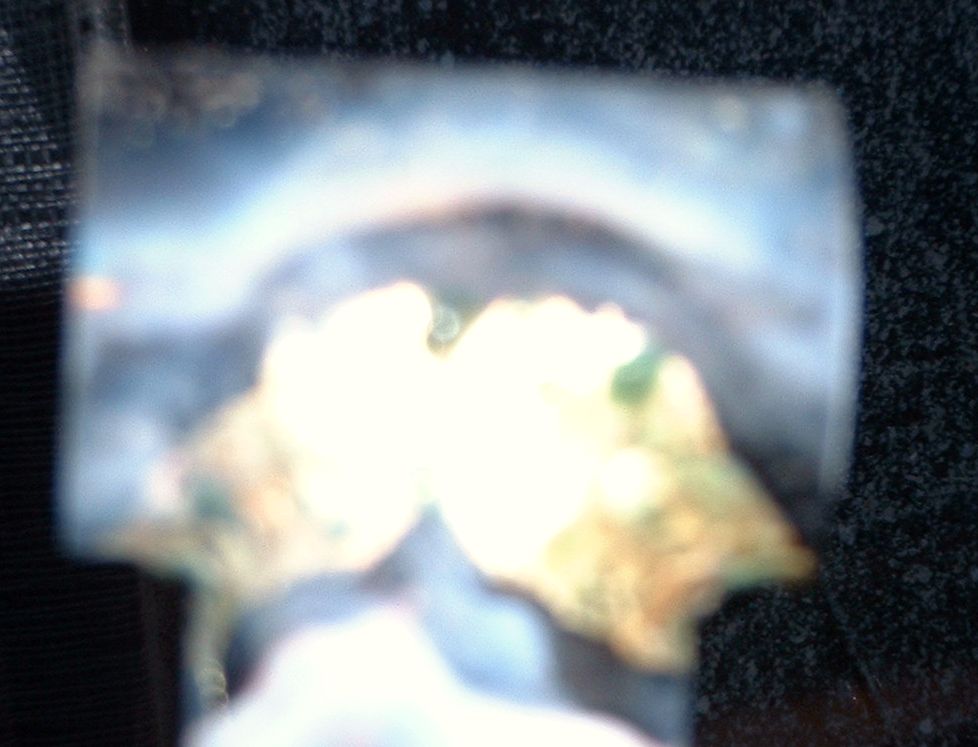

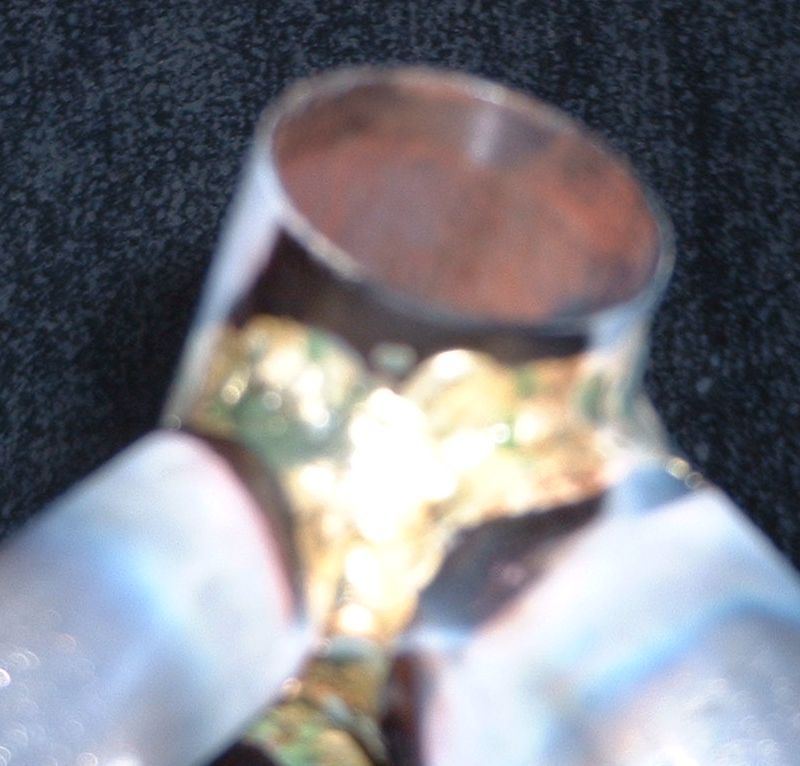

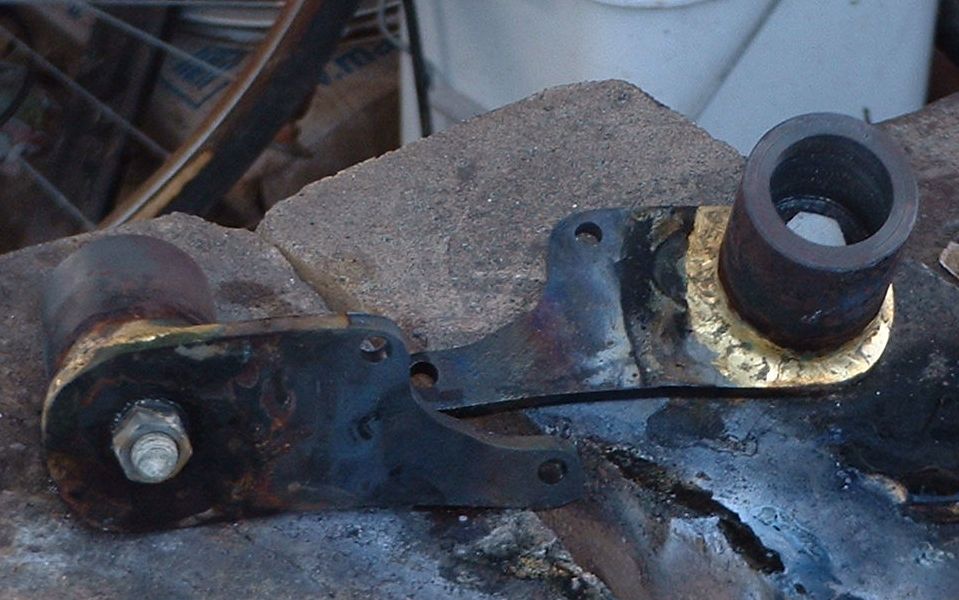

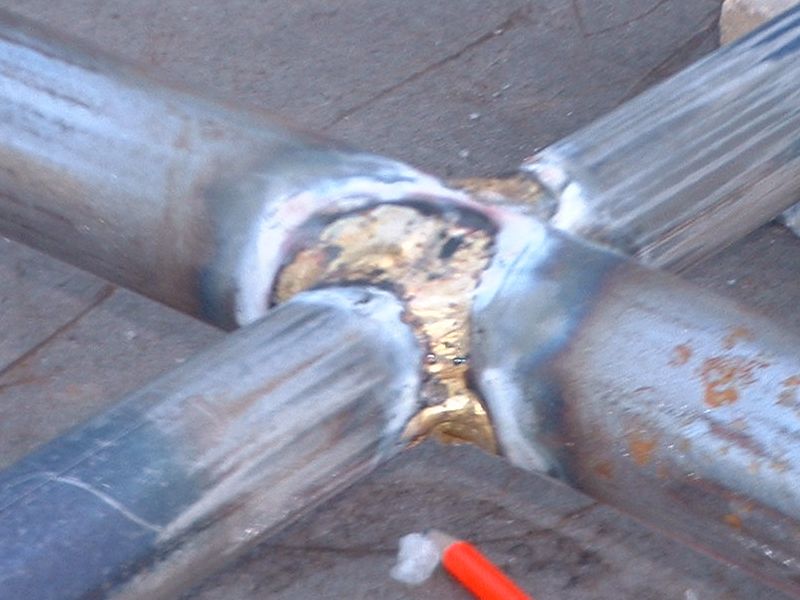

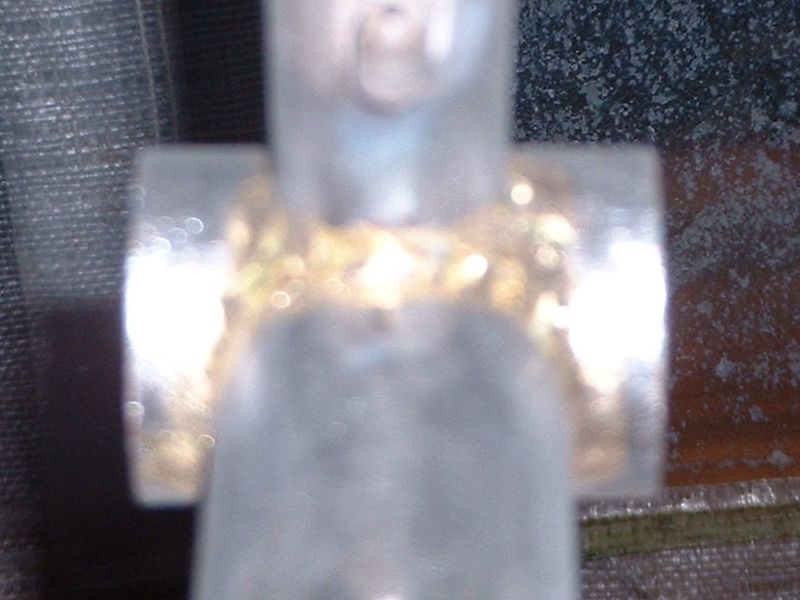

Welds not Cleaned
All welds are "Fillet Braze welded"

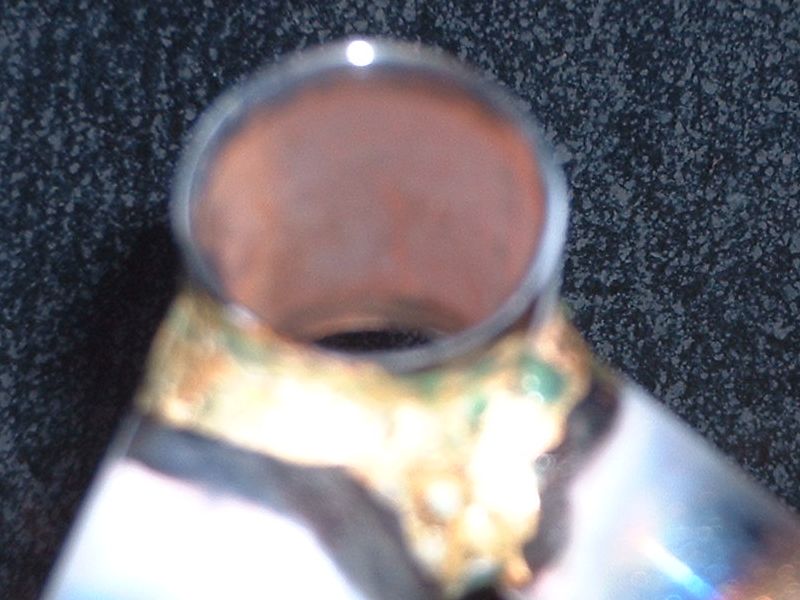

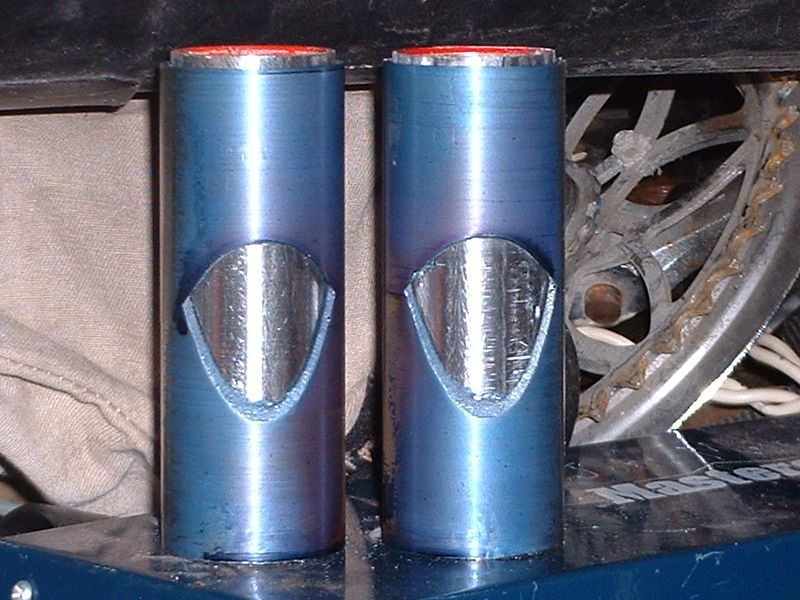

King-Pin and X-Member Fitting

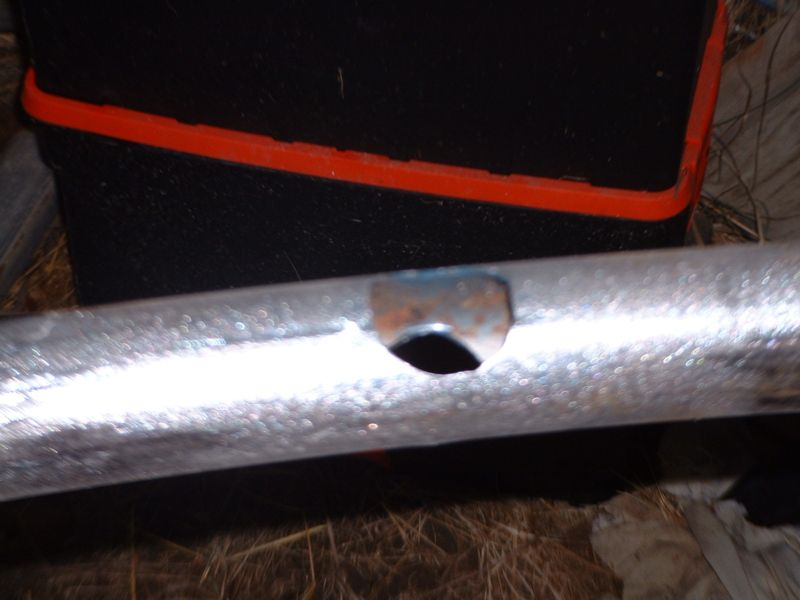

Main boom has through hole for Cross member

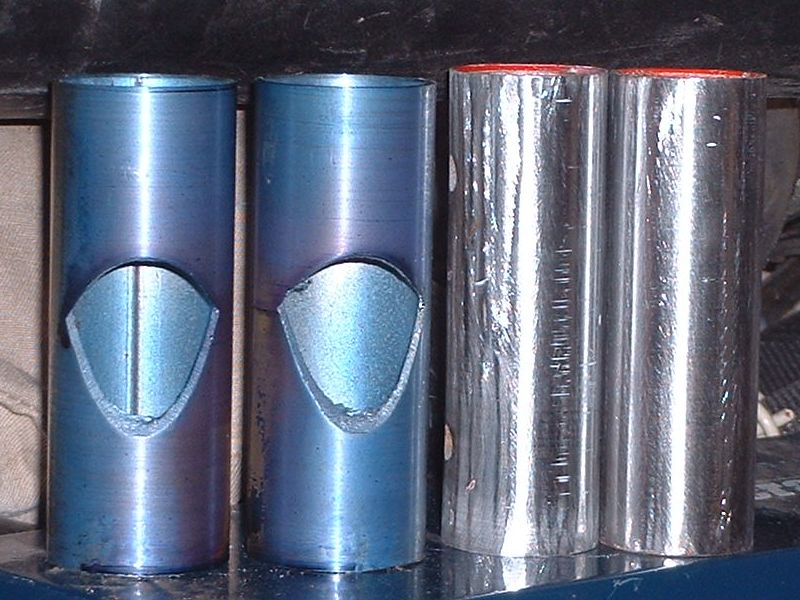

Holes in outer shell of kingpin are 18 deg for easy attachment

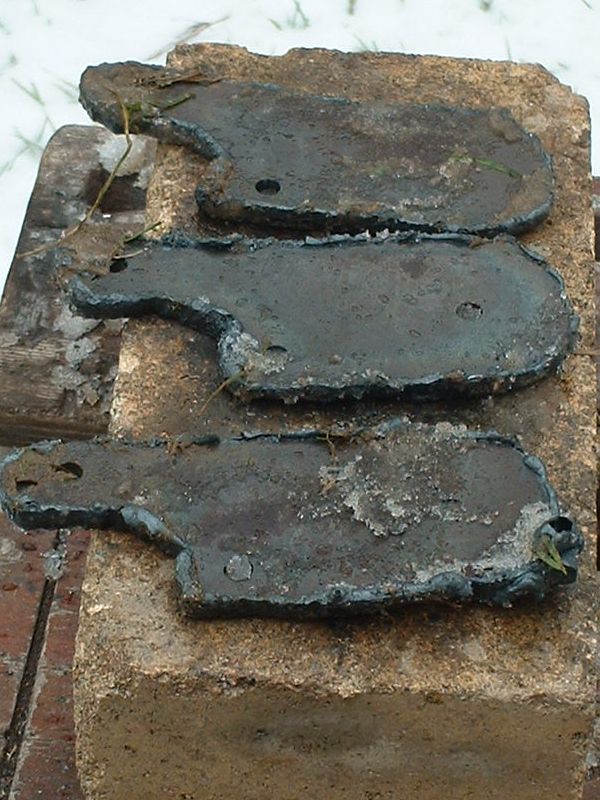

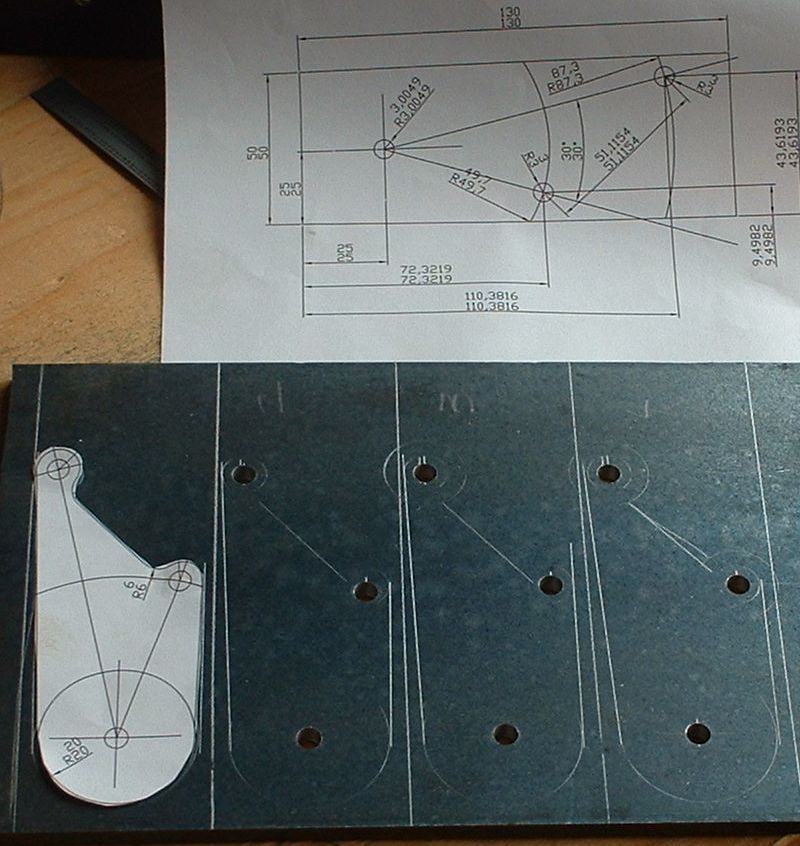

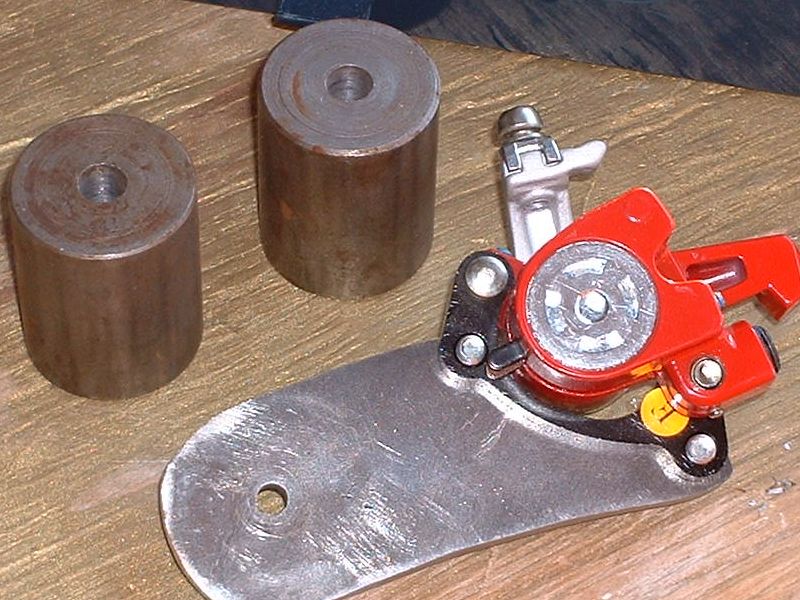

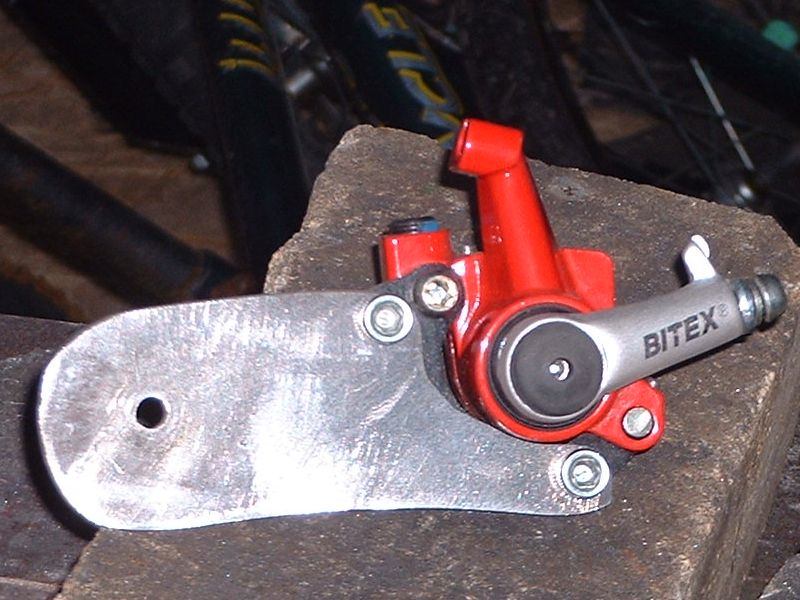

Brake Tabs

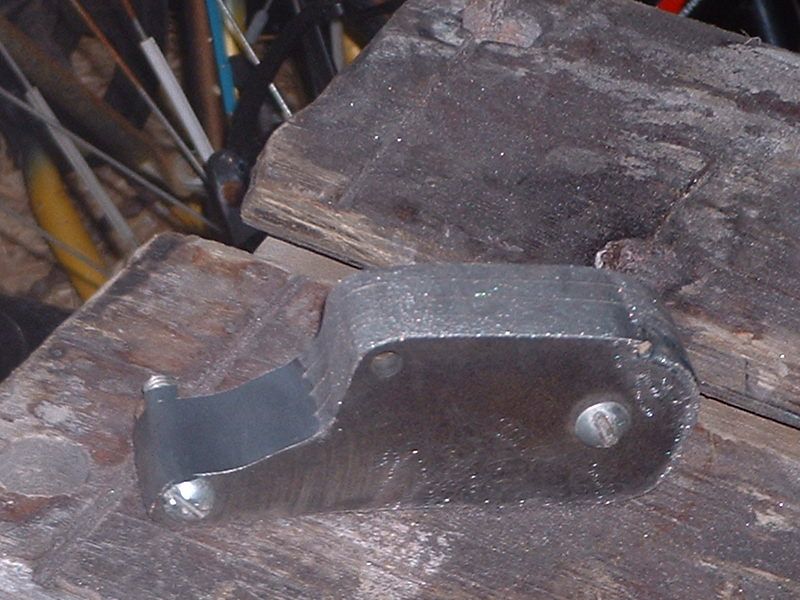

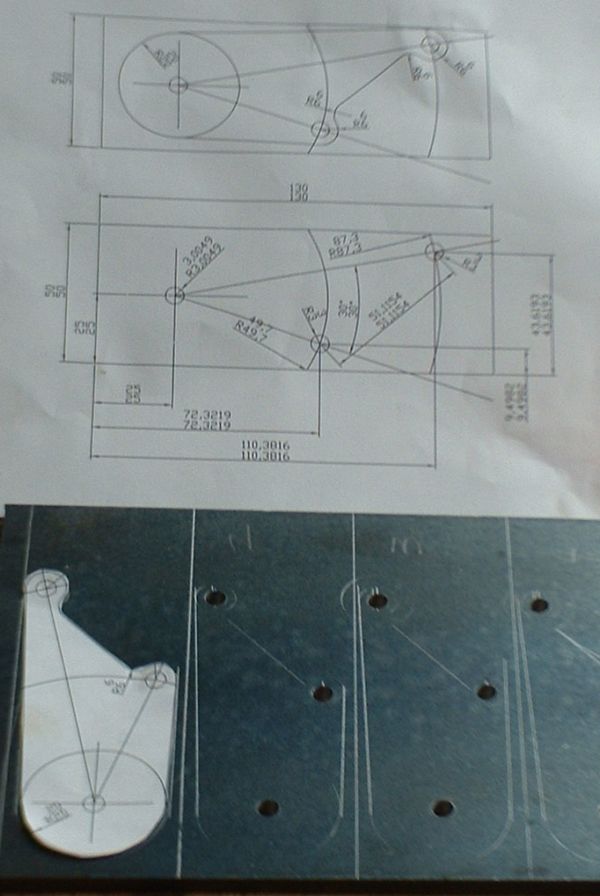

Flame cut then ground to shape as a set

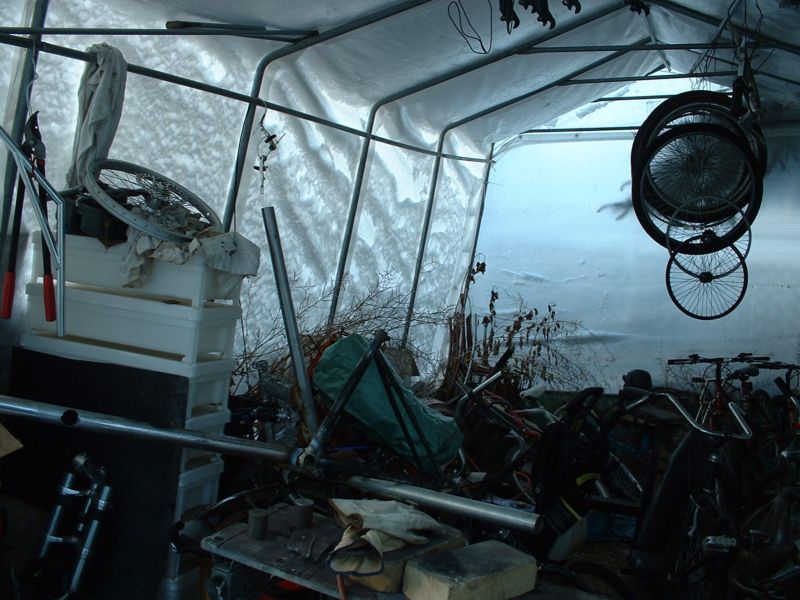

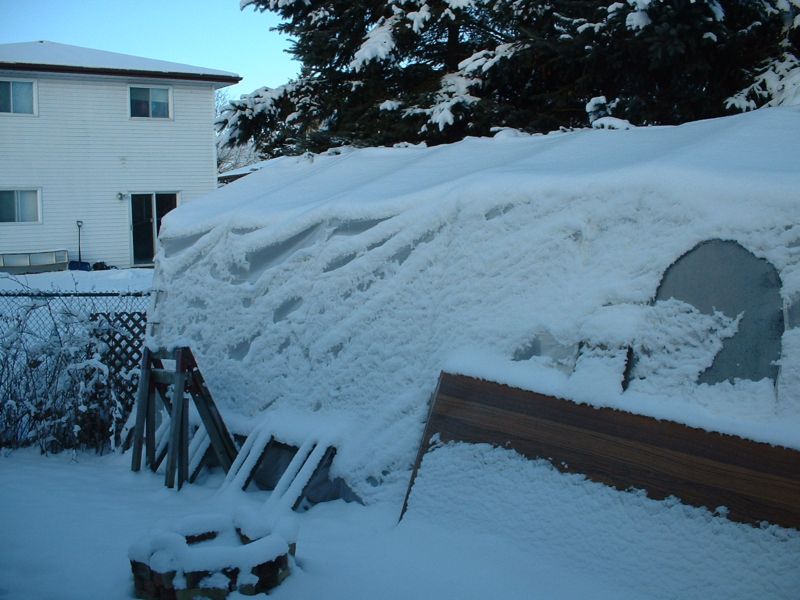

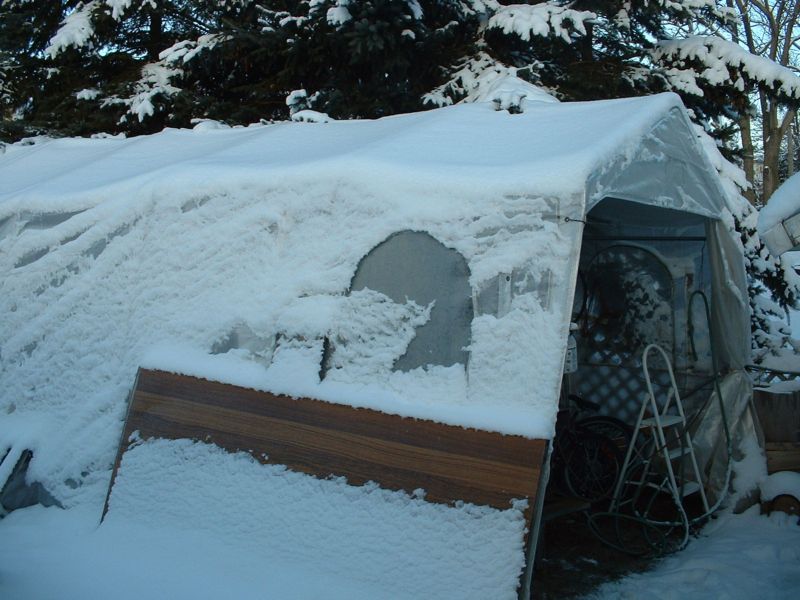

Weld Shop in January

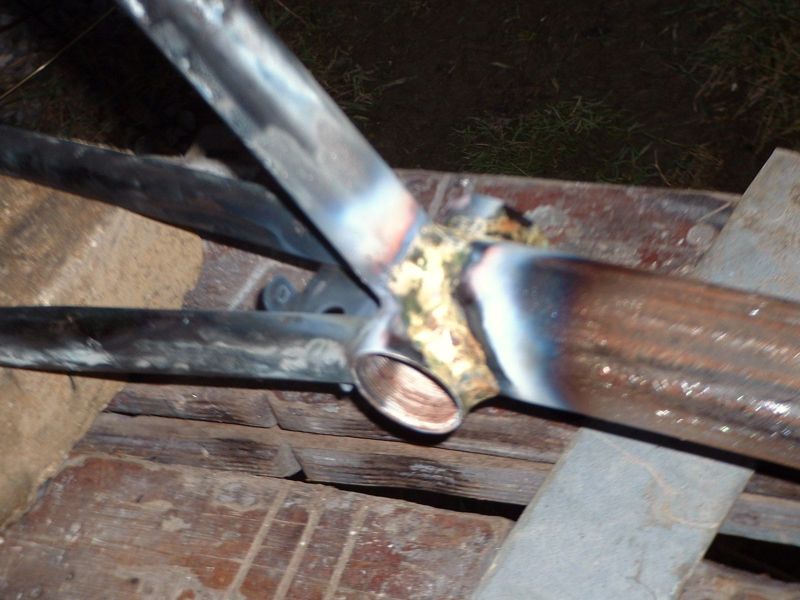

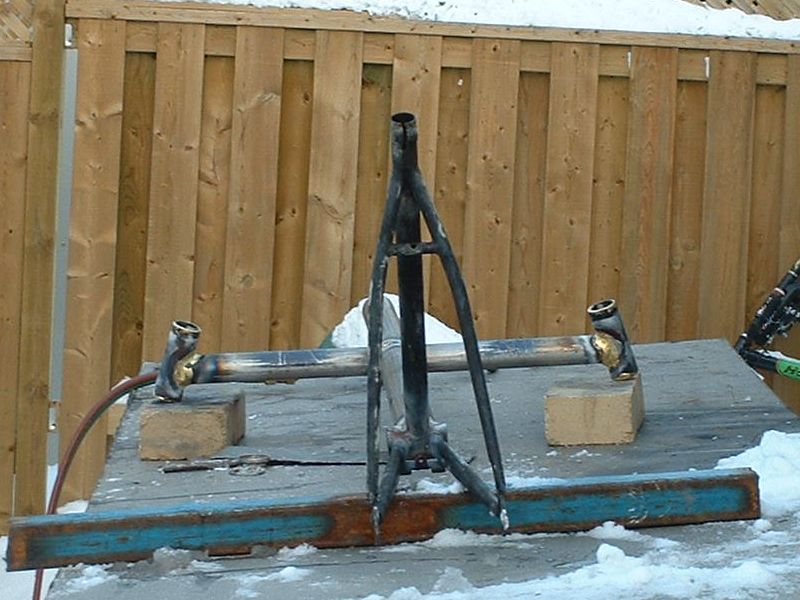

Main Frame build

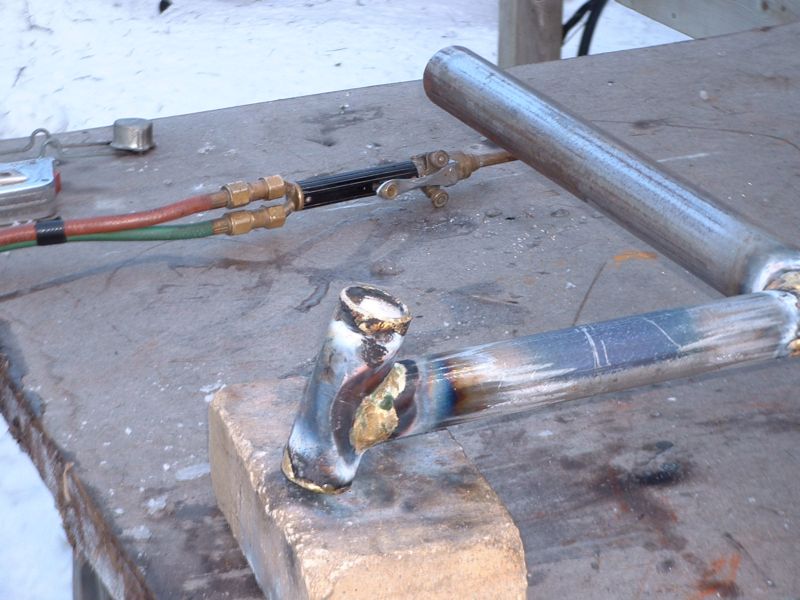

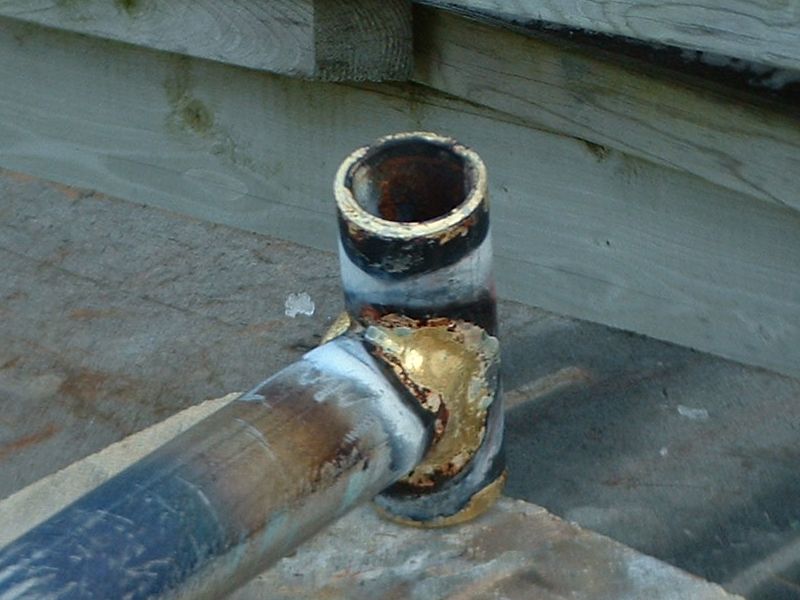

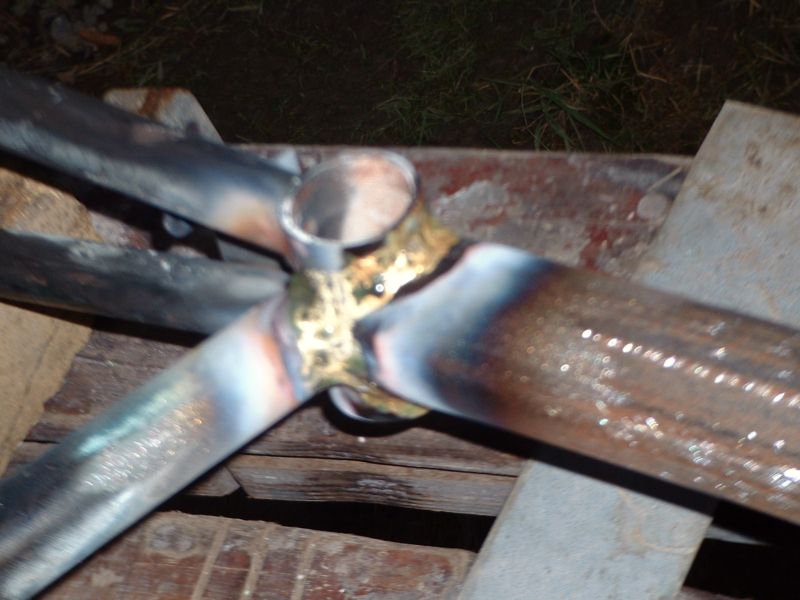

First pass on brazing
